Access Solutions

New Marks USA® Locks by Marks Electrified Mortise & Cylindrical Locks - They offer labor-saving electrified models in both mortise and cylindrical locksets in various functions, and for a variety of applications. Both Mortise and Cylindrical solenoid-operated locks in 12 or 24 VDC, Marks USA locks utilize solenoid actuators and are supplied with bridge rectifiers for use with either AC or DC current.

Ideal solutions in many applications, saving time and money vs. electrical strikes:
  • Stairwell Doors - With fire alarm integration
  • Man-Traps - With enterprise access control
  • Receptionist Buzz-in applications
  • Hospitals - Wired to touchless &/or ADA pads for entry thru locked doors

Marks USA FEATURES:

  • Flexibility in ease of installation. Marks USA can offer dramatic savings in time and labor over electric strikes, and a cleaner installation, by wiring directly through the hinges. This eliminates the time-consuming requirement of cutting into cement-filled frames.
  • Marks USA Mortise models provide better security, with various modes of operation and lock information i.e., Request to Exit switch (REX), key override switch &/or latch bolt sensor
  • Concealed latches for greater security - Electrified mortise or cylindrical models are more secure than electric strikes, that have exposed latch keeper
  • Fail-Safe or Fail-Secure Models – Ideal for stairwell doors with fire alarm system integration. (Choose EU Fail Secure, Electrically Unlocked or EL Fail Safe, Electrically Locked)
  • Cylindrical Models with Long Life Stainless Steel Retractor
  • Mortise Model with Quick Connect Harness, with 2 convenient plug-in connectors for easy, quick wiring. One is always used; the second optional plug-in connector is used only with key position sensor.
  • Request to Exit & Latch Bolt-monitored options. Are frequently chosen, for example, to integrate with enterprise access control and/or "man-traps"
  • 12VDC & 24 VDC compatible (AC rectifier module supplied)
  • Mortise Low operating current for cool running (265 mA 12VDC; 150mA 24VDC)
  • Meet or Exceed ANSI/BHMA A156.13 Grade 1
Cylindrical

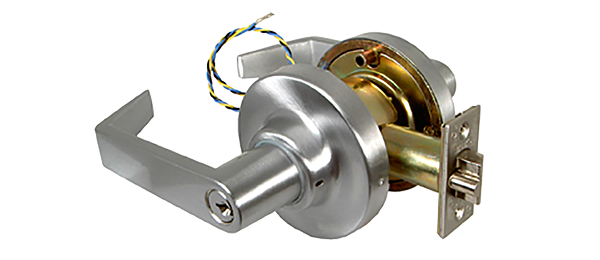

Marks USA Electrified Cylindrical Models:

Durable Grade 1 Cylindrical Lockset Models easily retrofit standard locksets and prep, ideal for electrical locking, unlocking, storeroom function with optional  built-in Request to Exit function.

  • The "Clutch" for trouble free service
  • Choice of Levers - American (195) and Crescent (295) style levers with return; Titan 495 without return
  • Fail-Safe or Fail-Secure Models – Ideal for stairwell doors with fire alarm system integration. Choose EU Fail Secure, Electrically Unlocked or EL Fail Safe, Electrically Locked
  • Myriad Options for cylinders, functions & finishes.
  • Supports Hi-Security, Conventional, IC core for Best size cores, Schlage™, Yale™, Medeco as well as others.
  • Finishes US 3, 4, 10, 10B, 26, 26D
  • Easy Electrified installation
  • Code-Compliant - Grade 1, ANSI/BHMA Spec 156.2; UL 3Hr Fire. ADA-compliant (depending on trim chosen)
Popular Marks USA Cylindrical Models:
  • 195FEL26D - Electrically-locked Grade 1 Survivor Lockset, US26D
  • 195FEU26D - Electrically-Unlocked Grade 1 Survivor Lockset US26D Contact Marks for additional functions, finishes & options
Marks USA REX Cylindrical Leversets w/Built-In Request to Exit

All the features above, plus with integral request to exit (REX) switch, ideal for access control applications.

Popular Marks USA Cylindrical REX (Request to Exit) Models
  • 195FEL26DW10 - Electrically-locked Version w/ REX Switch, US26D
  • 195FEU26DW10 - Electrically-Unlocked Version w/ REX Switch, US26D

  • Contact Marks for additional functions, finishes & opts. (Note Always use Suffix W10 for REX)

Mortise
Marks USA Electrified Mortise Locks

Marks USA Mortise Locks deliver additional safety, security, and convenience. Different electrified options allow integration to fire alarms and/or networked access control systems while preserving the durability and reliability that makes them and Marks USA products a leading choice for high traffic applications. 12VDC or 24VDC they are powered from a power supply or control panel. For Intrusion application, for example, exit sensors can signal to unlock the door and bypass the alarm.

Popular Marks USA Cylindrical Models:
  • Provision for up to 3 separate sensors: A key position sensor, a request to exit sensor, and a latch thrown/retracted sensor
  • Fail-Safe or Fail-Secure Models – Ideal for stairwell doors with fire alarm system integration. (Choose EU Fail Secure, Electrically Unlocked or EL Fail Safe, Electrically Locked)
  • Quick Connect Harness, with 2 convenient plug-in connectors for easy, quick wiring. (One is always used; the second optional plug-in connector is used only with key position sensor.)
  • Myriad Options for cylinders, IC core housings, functions, finishes,US 3, 4, 10, 10B, 26, 26D
  • Code-Compliant - Grade 1, ANSI/BHMA Spec 156.2; UL 3Hr Fire. ADA-compliant (depending on trim chosen)
Popular Marks USA Mortise Models:
  • 195FEL26DW10 - Electrically-Locked Mortise Lock w/Request to Exit Switch, 26D
  • 195FEU26DW10 - Electrically-Unlocked Mortise Lock w/Request to Exit Switch, 26D

TRIM TYPES

ROSES ESCUTCHEON PLATES LEVERS KNOBS
Trim Types Trim Types Trim Types Trim Types
Contact Marks for ordering from numerous function options, finishes & trim types available on Mortise Locks
MarksUSA
  • BUY AMERICAN
  • Marks USA has made compliance with the Buy American Act (BAA) and American Recovery & Reinvestment Act (ARRA) easy. Marks USA is an American manufacturer of quality door hardware products with manufacturing facilities in Amityville, NY. Marks USA is an American brand trusted throughout the door hardware industry.

    Read more...
